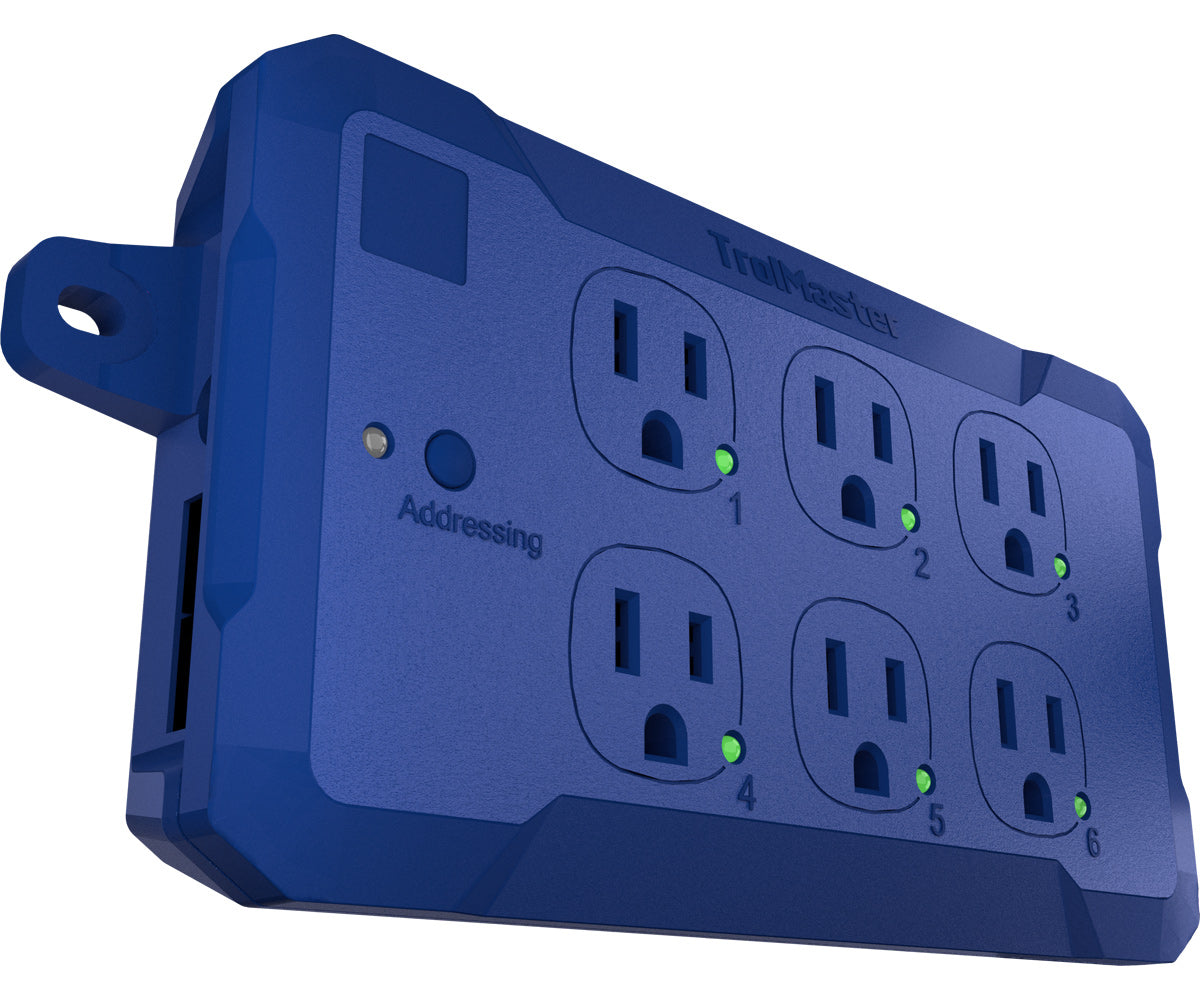

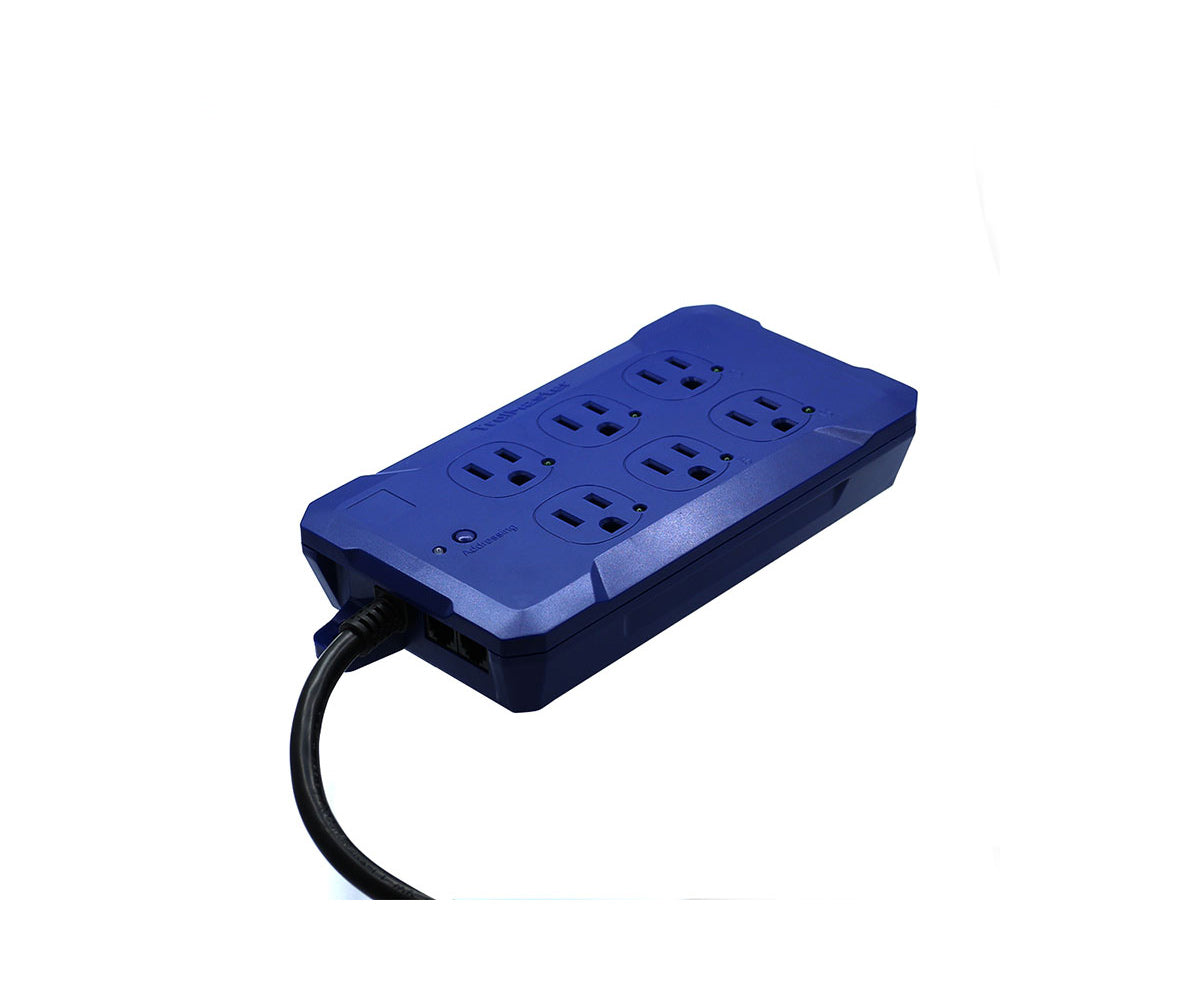

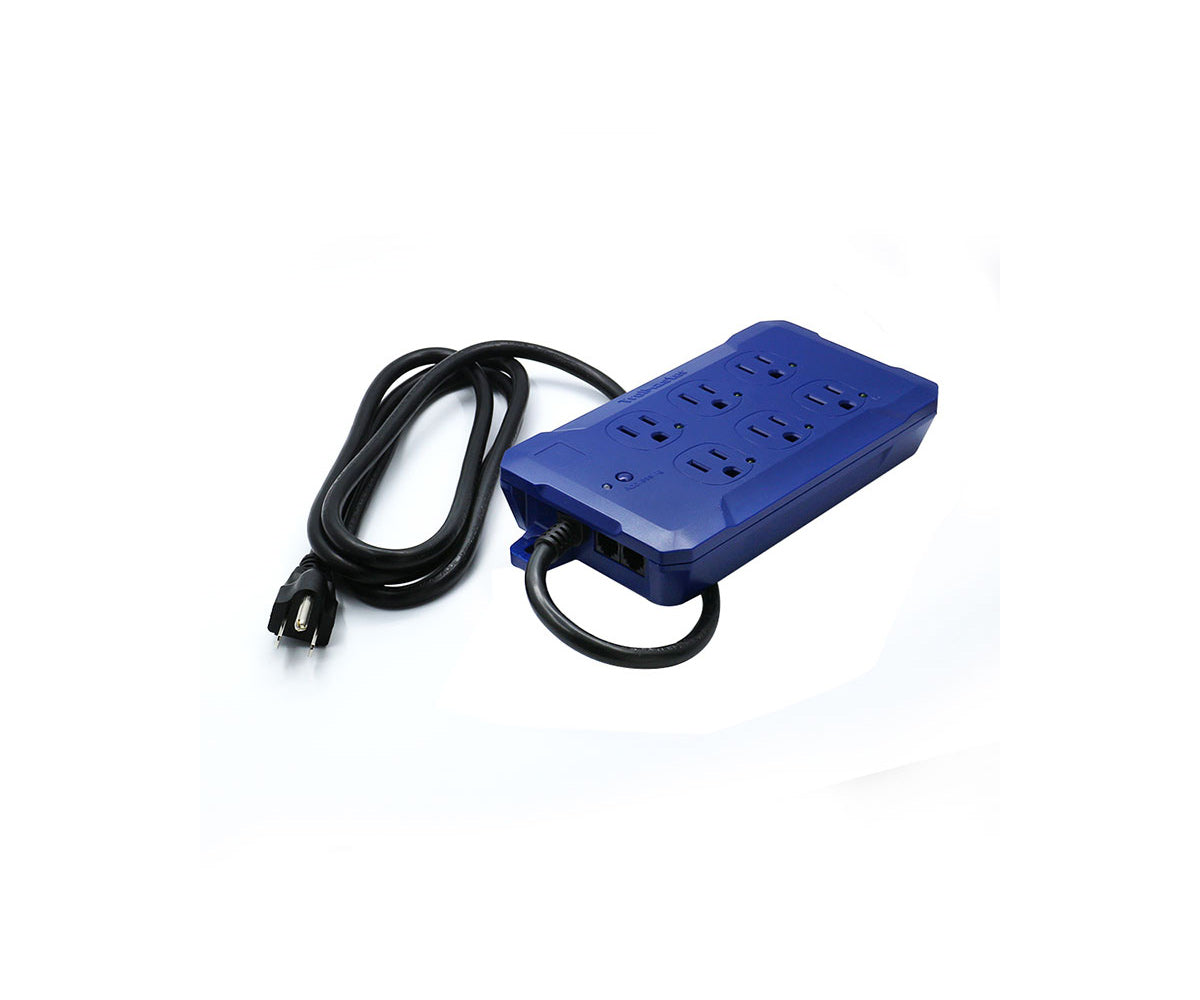

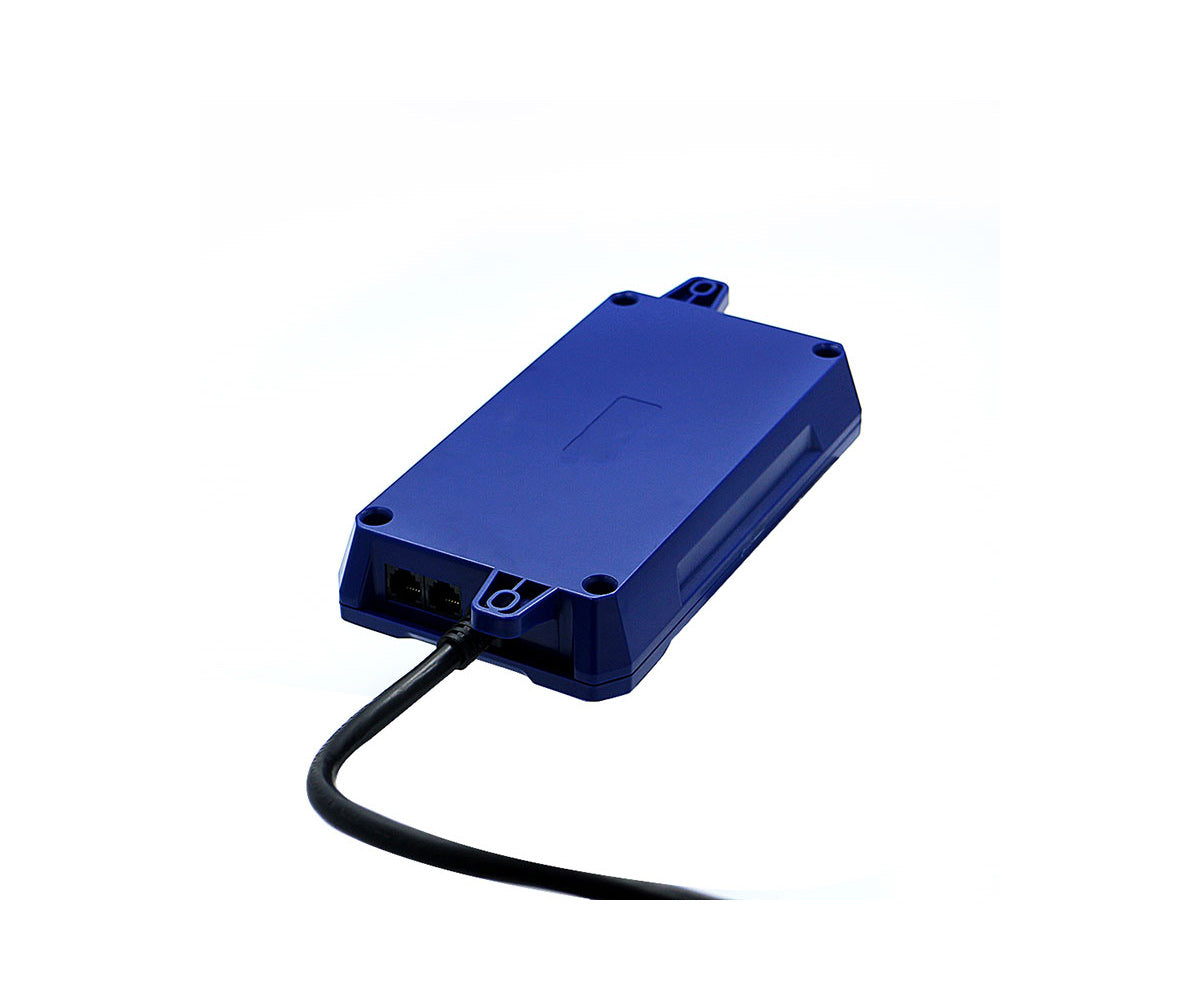

TrolMaster's OA6-110 control board is designed to control small 110V pump or solenoid valves (less than 1.5 amps). The OA6-110 has 6 separately controlled 120 volt outlets. Each has an LED indicator to show whether the outlet is On or Off. Up to (5) of the OA6-110 modules can be connected to a single Aqua-X.
Features & Benefits: LED Power Indicator
Addressing Button
6 Individually-Controlled 110V Outputs
Individual LED Indicator for Each Output
Double RJ12 Cable Sockets for Easy Connectivity
Package Content:1 x 110V Control Board
1 x 16ft RJ12 Cable
Specification:Input Voltage :120 VAC
Max Input Current :9A
Max Output Voltage/Current :120VAC/1.5A per Output
Working Temperature :32°-122°F
Working Humidity :≤90%
Packaging Dimensions :275mm(L) x 164mm(W) x 62mm(H)
