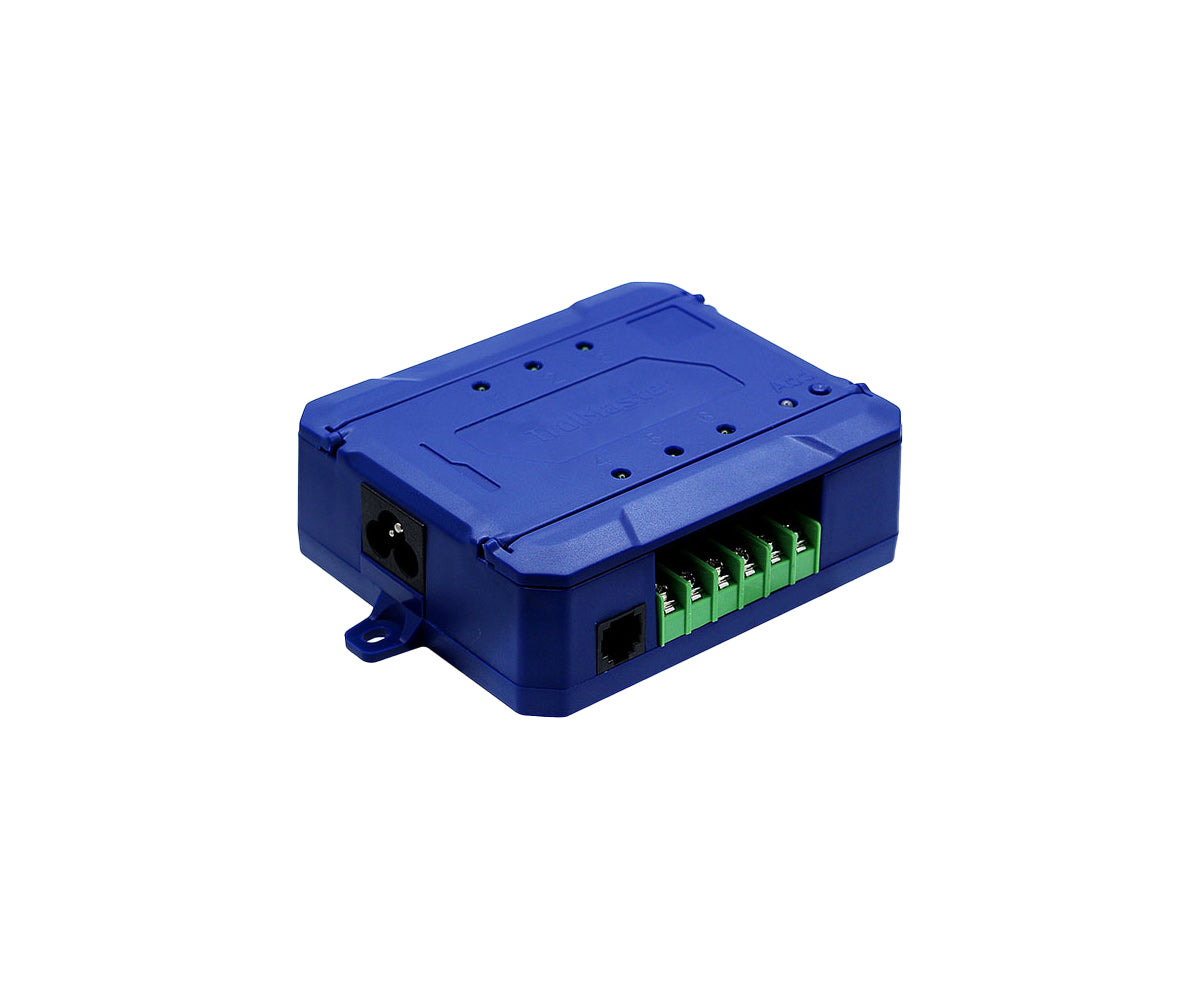

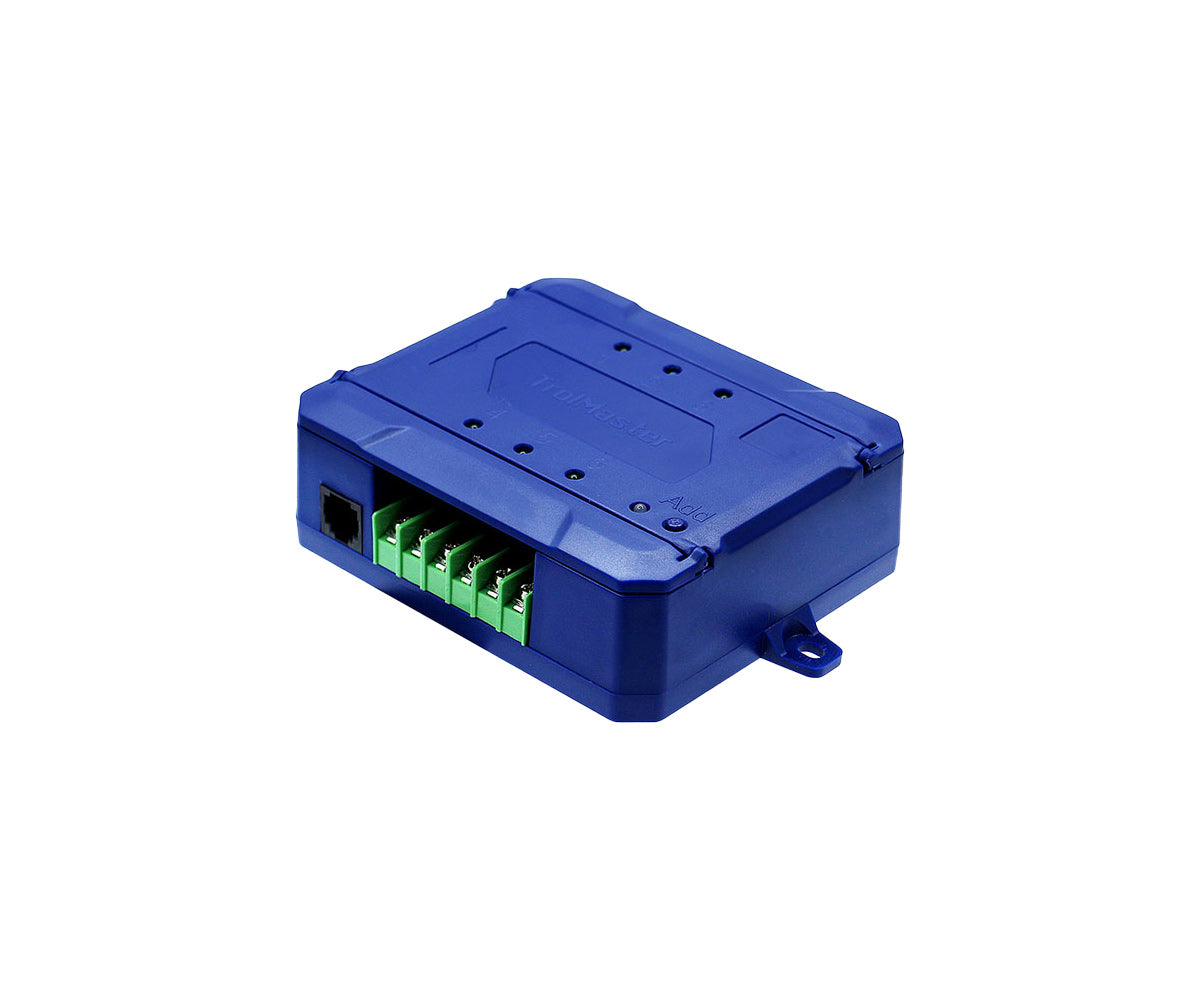

TrolMaster 6 Outputs 24V Control Board (OA6-24)

The OA6-24 control board is designed to control multiple 24vac solenoid valves.

It provides an easy and efficient method to control up to 6 valves… each with individual timer settings. Up to 5 OA6-24 can be connected to a single Aqua-x providing a maximum of 30 individually controlled outputs to connect to your solenoid valves. The Aqua-x can also provide a “master pump link” by using a DSP-1 along with the OA6-24. Connecting a DSP-1 to the OA6-24 provides an automatic “pump link” between the DSP-1 and the OA6-24. When any of the 24vac irrigation zones are activated on the OA6-24, the DSP-1 will automatically turn on the pump.

• Features & Benefits: LED Power Indicator
• Addressing Button

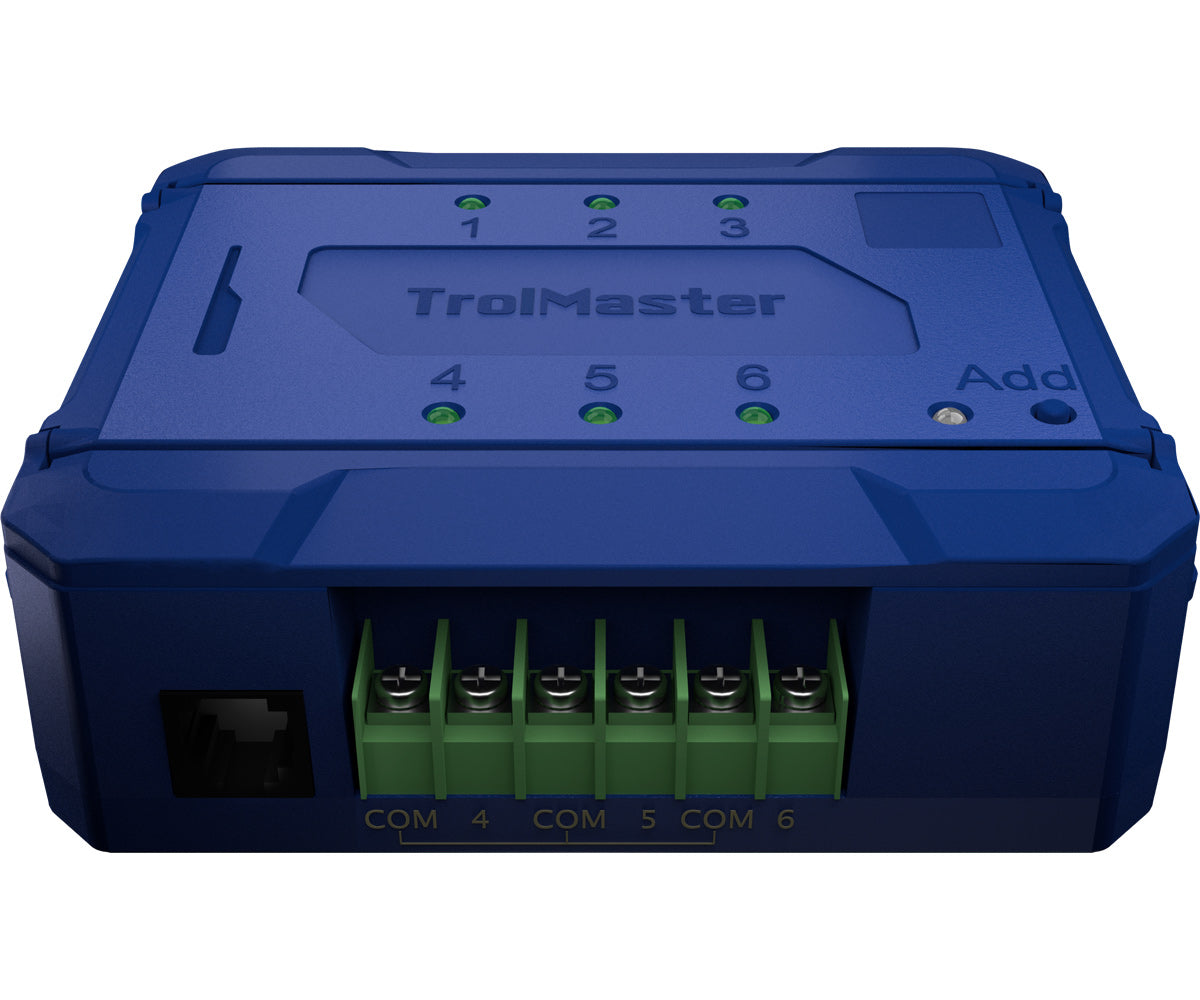

• 6 Individually-Controlled 24V Outputs

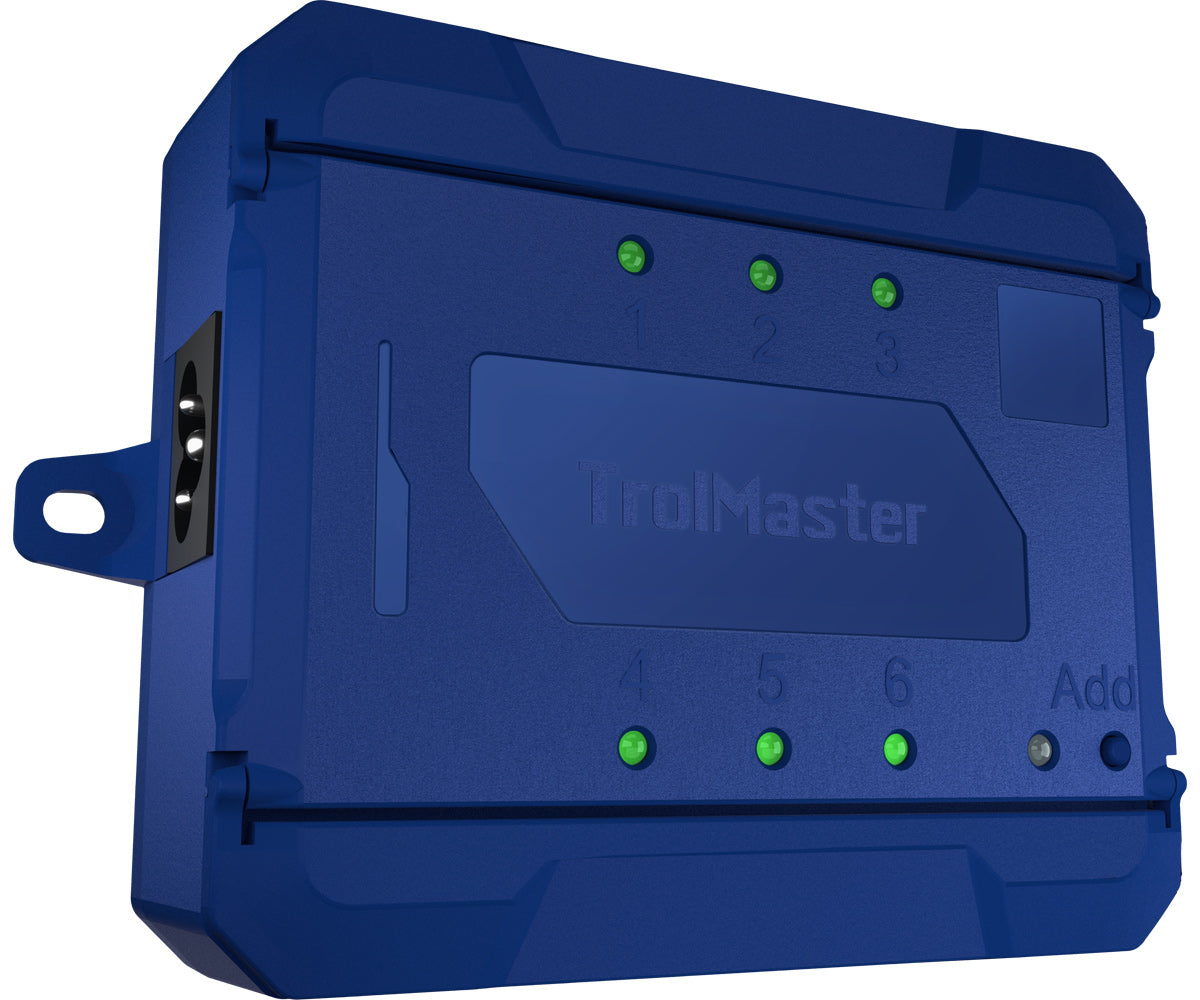

• Individual LED Indicator for Each Output
• Double RJ12 Cable Sockets for Daisy Chain Connectivity
• Package Content:1 x 24V Control Board
• 1 x 16ft RJ12 Cable

• Specification:Input Voltage :110-240 VAC
• Max Input Current :0.2A
• Max Output Voltage/Current :24VAC/0.2A per output
• Working Temperature :32°-122°F
• Working Humidity :≤90%
• Packaging Dimensions :275mm(L) x 164mm(W) x 40mm(H)
