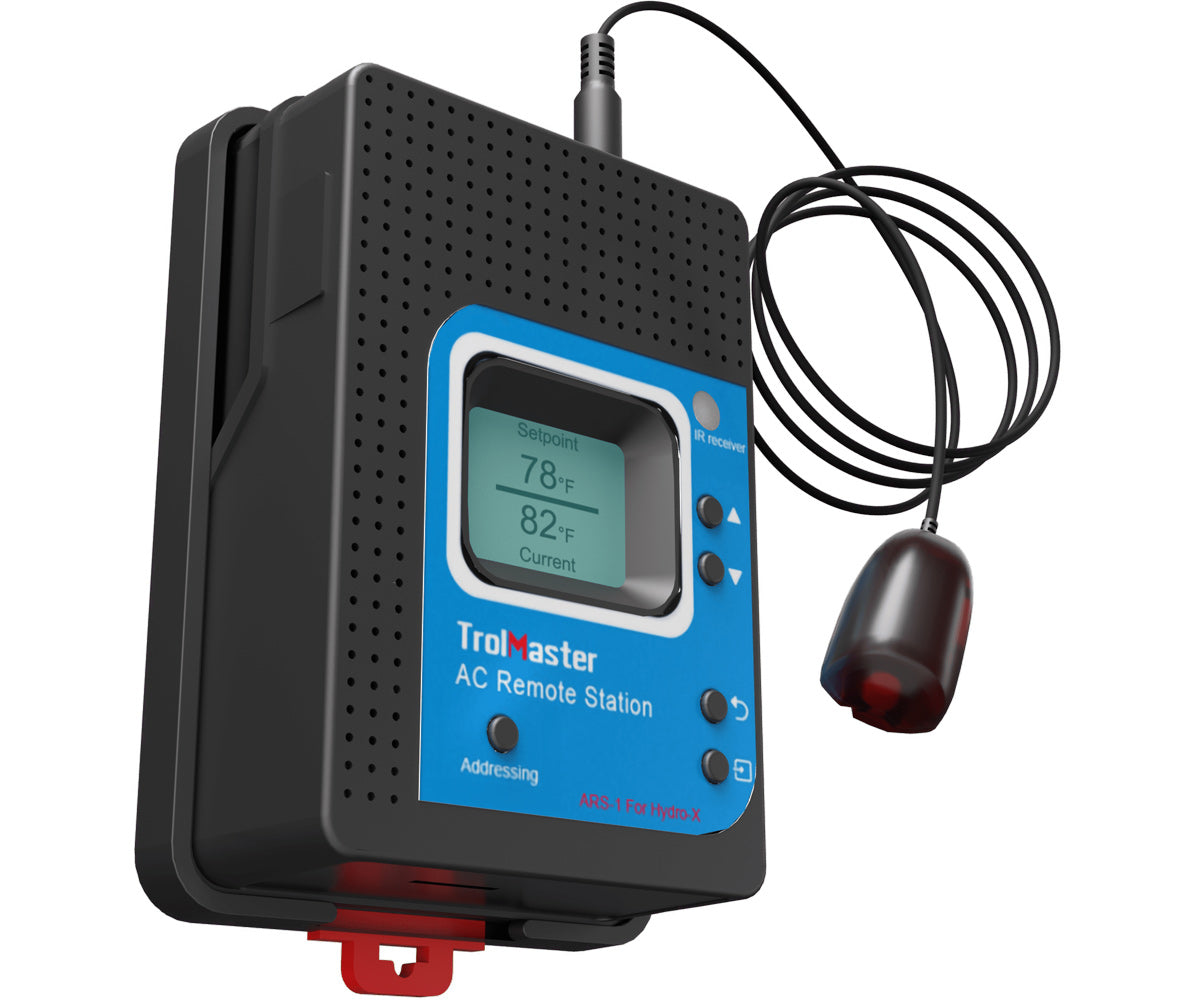

TrolMaster (ARS-1) AC Remote Station for Hydro-X System

TrolMaster (ARS-1) AC Remote Station for Hydro-X System

TrolMaster's ARS-1 mini-split air conditioner controller is a unique product that solves the age-old problem of having separate day and night temperature settings on your mini-split air conditioners. The ARS-1 is a universal controller that works with most mini-split air conditioners (and some window-type AC units too), as long as the unit came with an IR / infrared remote controller. We use the remote control that came with the unit to “teach” those IR signals to the ARS-1 module. Once the ARS-1 “learns” those remote-control codes, the ARS-1 will send those same signals to the indoor mini-split head unit changing the setpoint to the desired Day or Night temperature setting automatically base on the photocell sensor status.

Note: The ARS-1 is currently not compatible with the following brands of devices: Daiken, Mr. Cool, Innovair, Cooper and Hunter.

• Features & Benefits: LCD Display, Easy Operation
• Seamless Connection with Hydro-X
• Micro-SD for Firmware Upgrade
• Address Assignment
• Package Content:1 x AC Remote Station (ARS-1)
• 1 x Signal Emitter
• 1 x 16ft RJ12 Cable
• 1 x 4ft RJ12 Cable
• 1 x RJ12 T-Splitter

• Specification:Output Voltage: 0~11.5V
• Maximum Current: 0.2A
• Working Temperature: 32-122°F
• Working Humidity: ≤90%
• Packaging Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
