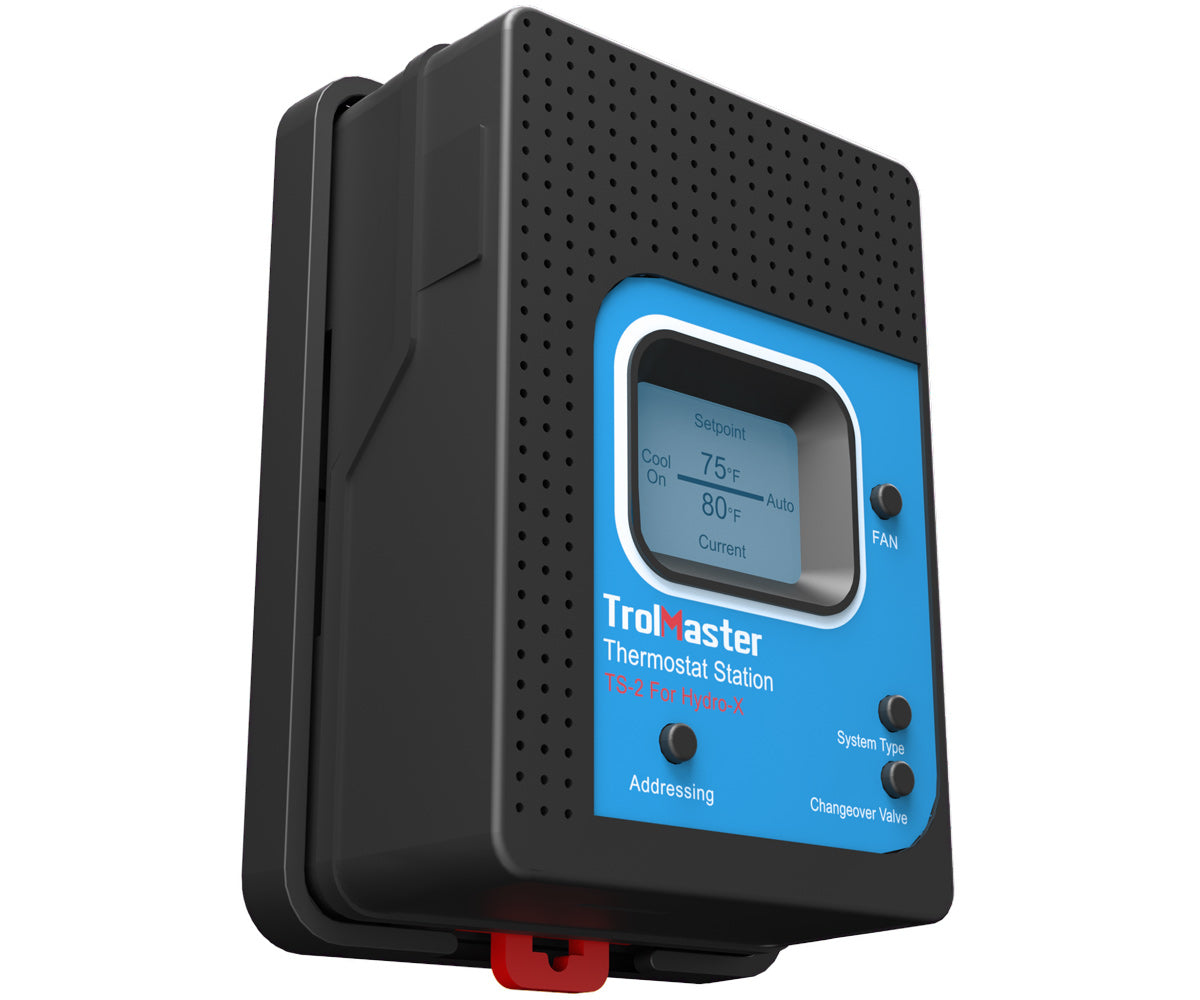

TrolMaster Hydro-X Thermostat Station 2 (heat pump and conventional HVAC) (TS-2)

TrolMaster (TS-2) Thermostat Station for Hydro-X System

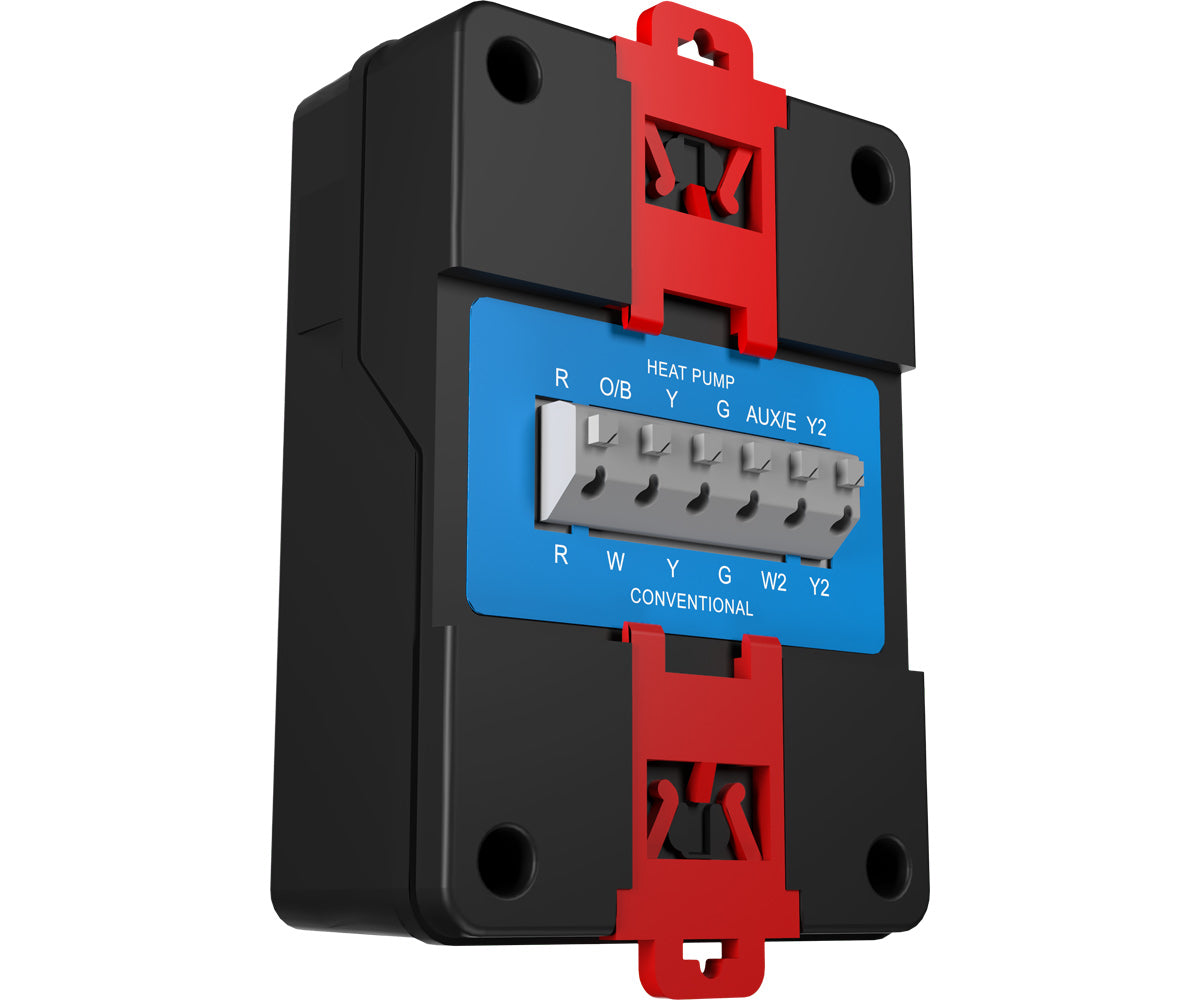

TrolMaster's TS-2 thermostat station is designed to replace a thermostat connected to a standard HVAC unit. The TS-2 can be used to control most HVAC systems including heat pumps and multi-stage HVAC systems. The TS-2 is wired to the HVAC system using the same low-voltage thermostat cable and has the standard color-coded wiring as most thermostats. The Hydro-x allows separate Day and Night settings for each of up to (4) TS modules, so multiple HVAC systems can be controlled by a single Hydro-X system. The TS-2 also has an adjustable delay time for each HVAC system being activated. That minimizes high start-up (inrush current) and allows up to 4 HVAC systems to be safely controlled.

Features & Benefits:

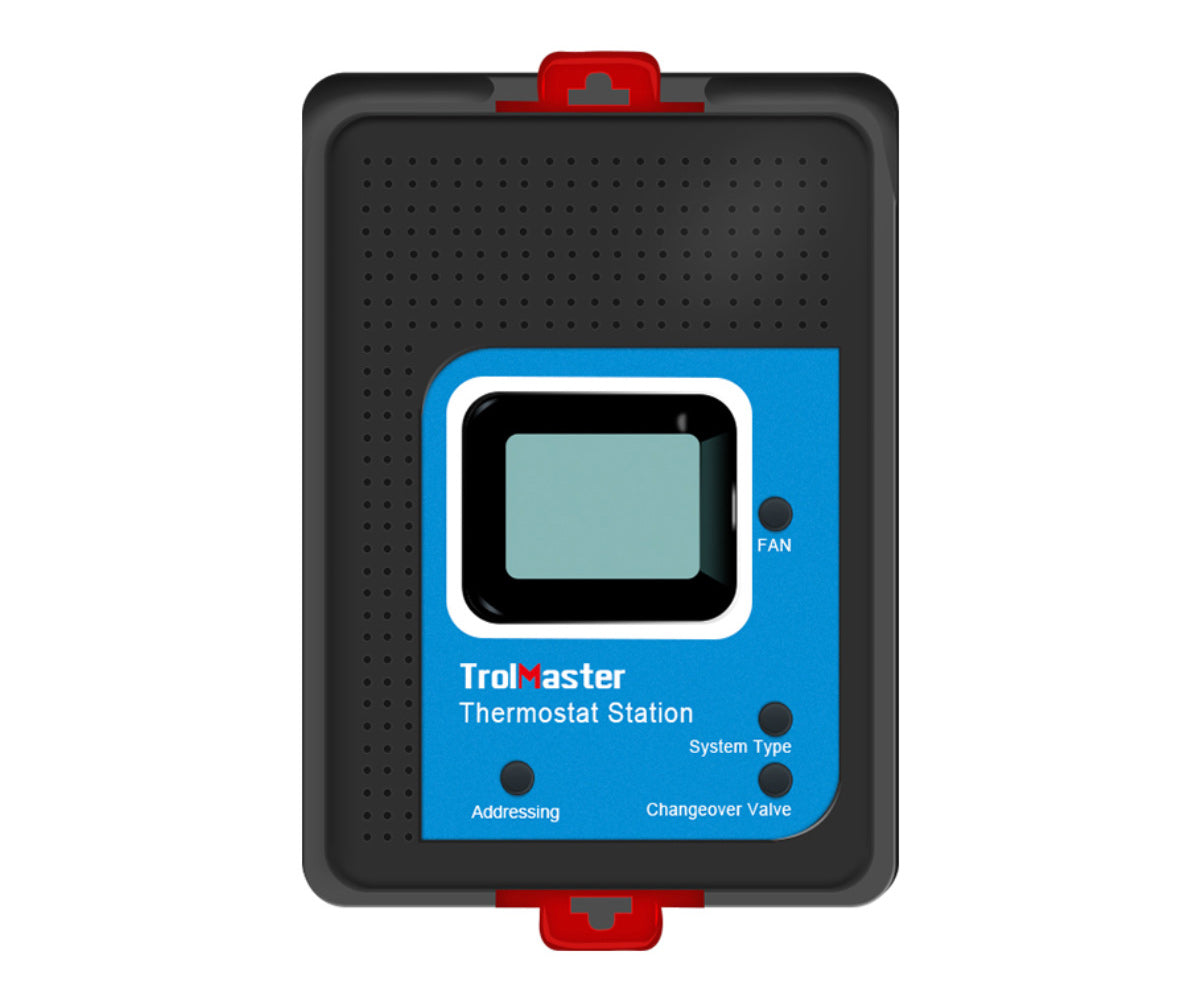

• LCD Display, Easy Operation
• Seamless Connection with Hydro-X
• Micro-SD for Firmware Upgrade
• Address Assignment
• Plug & Play
• Package Content:1 x Thermostat Station (TS-2)
• 1 x 16ft RJ12 Cable
• 1 x 4ft RJ12 Cable
• 1 x RJ12 T-Splitter

• Specification:Output Voltage :24V
• Maximum Current :1A
• Working Temperature :32-122°F
• Working Humidity :≤90%
• Packaging Dimensions :160mm(L) x 86mm(W) x 86mm(H)
